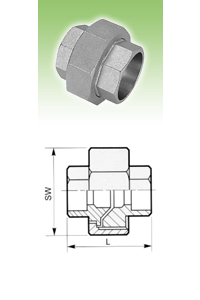

Union Conical Joint Socket Weld
| Size | ØB | L | SW |
|---|---|---|---|
| 1/8" | 11.0 | 29.0 | 25.0 |
| 1/4" | 14.4 | 37.5 | 30.0 |
| 3/8" | 17.8 | 38.0 | 35.0 |
| 1/2" | 22.0 | 42.0 | 42.0 |
| 3/4" | 27.4 | 50.4 | 47.0 |
| 1" | 34.1 | 48.0 | 53.0 |
| 1-1/4" | 42.9 | 59.0 | 71.0 |
| 1-1/2" | 48.9 | 65.0 | 78.0 |
| 2" | 61.4 | 69.0 | 92.0 |
| 2 -1/2" | 74.1 | 80.0 | 112.0 |
| 3" | 90.0 | 88.0 | 127.0 |
| 4" | 115.7 | 108.0 | 157.0 |
| Unit : MM | |||
