Fittings » Low Pressure Screwed » Plugs

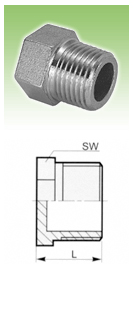

Hexagon Plug, Taper (Conical) Thread
Size L SW Weight
1/8" 17.0 12.0 0.012
1/4" 17.5 16.0 0.02
3/8" 18.0 20.0 0.036
1/2" 25.0 24.0 0.051
3/4" 26.0 30.0 0.076
1" 29.0 38.0 0.119
1-1/4" 35.0 46.0 0.195
1-1/2" 38.0 52.0 0.297
2" 39.0 65.0 0.432
2-1/2" 44.0 81.0 0.806
3" 54.0 94.0 1.164
4" 55.0 119.0 1.961
Unit : mm
