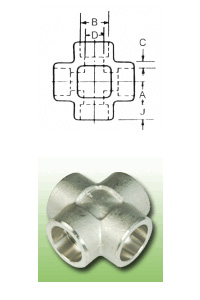

DN
|
Nom. pipe Size
|
Socket Bore Dia (Max-Min)
|
Bore Diameter (Max-Min)
|
Socket Wall Thickness
|
Depth of Socket Min.
|
Center to Bottom of Socket
|
Tolerances ±
|
|
Ave.
|
Min.
|
|
|
|
B
|
D
|
C
|
J
|
A
|
(A )
|
|
6
|
1/8"
|
11.2-10.8
|
7.6-6.1
|
3.18
|
3.18
|
9.5
|
11.0
|
1.0
|
|
8
|
1/4"
|
14.6-14.2
|
10.0-8.5
|
3.78
|
3.30
|
9.5
|
11.0
|
1.0
|
|
10
|
3/8"
|
18.0-17.6
|
13.3-11.8
|
4.01
|
3.50
|
9.5
|
13.5
|
1.5
|
|
15
|
1/2"
|
22.2-21.8
|
16.6-15.0
|
4.67
|
4.09
|
9.5
|
15.5
|
1.5
|
|
20
|
3/4"
|
27.6-27.2
|
21.7-20.2
|
4.90
|
4.27
|
12.5
|
19.0
|
1.5
|
|
25
|
1"
|
34.3-33.9
|
27.4-25.9
|
5.69
|
4.98
|
12.5
|
22.5
|
2.0
|
|
32
|
1-1/4"
|
43.1-42.7
|
35.8-34.3
|
6.07
|
5.28
|
12.5
|
27.0
|
2.0
|
|
40
|
1-1/2"
|
49.2-48.8
|
41.6-40.1
|
6.35
|
5.54
|
12.5
|
32.0
|
2.0
|
|
50
|
2"
|
61.7-61.2
|
53.3-51.7
|
6.93
|
6.04
|
16.0
|
38.0
|
2.0
|
|
65
|
2-1/2"
|
74.4-73.9
|
64.2-61.2
|
8.76
|
7.67
|
16.0
|
41.0
|
2.5
|
|
80
|
3
|
90.3-89.8
|
79.4-76.4
|
9.52
|
8.30
|
16.0
|
57.0
|
2.5
|
|
100
|
4"
|
115.7-115.2
|
103.8-100.7
|
10.69
|
9.35
|
19.0
|
66.5
|
2.5
|
| Unit : MM |
